Dosing System
DOSE

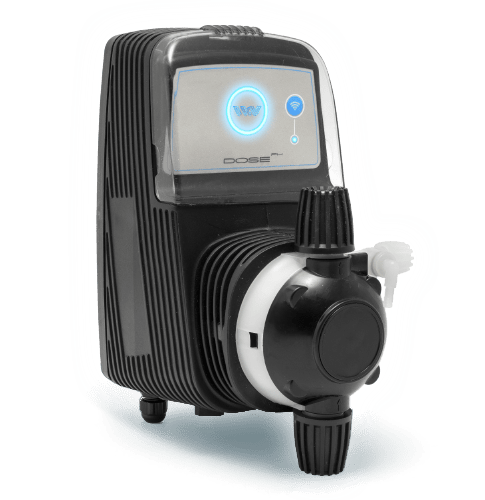

Dose is a digital multifunction solenoid driven pump with native connectivity. It enables the automatic dosing of chemicals by measuring the desired parameters or by setting water volume, operating times, and chemicals dosage.
General Information
Fields of use
Public or private swimming pools
Water treatment systems
Characteristics
- Integrated Wi-Fi connection
- Power supply voltage: 110-230 Vac
- "Access Point" / "Standby" button to connect to the Wi-Fi network
- Ring of bright LEDs facilitating parameters reading and signaling any errors
- IP65 degree of protection
- Possibility to select the desired performance, choosing the flow rate (between 1 and 20 l/h), and the pressure (between 1 and 20 bar)
- Available versions: Multi, pH, Rx, CI
Technical data
| Code | Name | Solenoid | Setting | Range flow rate (l/h) | Range pressure (bar) | Strokes (n/min) | Stroke volume (ml/stroke | Consumption (W) |
|---|---|---|---|---|---|---|---|---|
| IWDO2013A2000 | IWDOSE | M60 | A | 1 | 7 | 100 | 0,17 | 14 |
| IWDO2013A2000 | IWDOSE | M60 | A | 5 | 1 | 100 | 0,83 | 14 |
| IWDO3013A2000 | IWDOSE PH-ORP | M60 | B | 3 | 7 | 150 | 0,33 | 14 |
| IWDO3013A2000 | IWDOSE PH-ORP | M60 | B | 9 | 1 | 150 | 1,00 | 14 |
| IWDO4013A2000 | IWDOSE CL | M60 | C | 55 | 6 | 180 | 0,51 | 14 |
| IWDO4013A2000 | IWDOSE CL | M60 | C | 10 | 1 | 180 | 0,93 | 14 |
| IWDO2023A2000 | IWDOSE | M70 | A | 18 | 20 | 75 | 0,40 | 16 |
| IWDO2023A2000 | IWDOSE | M70 | A | 4 | 1 | 75 | 0,89 | 16 |
| IWDO3023A2000 | IWDOSE PH-ORP | M70 | B | 4 | 12 | 120 | 0,56 | 16 |
| IWDO3023A2000 | IWDOSE PH-ORP | M70 | B | 7 | 1 | 120 | 0,97 | 16 |
| IWDO4023A2000 | IWDOSE CL | M70 | C | 58 | 9 | 180 | 0,54 | 16 |
| IWDO4023A2000 | IWDOSE CL | M70 | C | 14 | 1 | 180 | 1,30 | 16 |
| IWDO2033A2000 | IWDOSE | M80 | A | 4 | 20 | 150 | 0,44 | 22 |
| IWDO2033A2000 | IWDOSE | M80 | A | 10 | 1 | 150 | 1,11 | 22 |
| IWDO3033A2000 | IWDOSE PH-ORP | M80 | B | 65 | 12 | 200 | 0,54 | 22 |
| IWDO3033A2000 | IWDOSE PH-ORP | M80 | B | 13 | 1 | 200 | 1,08 | 22 |
| IWDO4033A2000 | IWDOSE CL | M80 | C | 135 | 5 | 300 | 0,75 | 22 |
| IWDO4033A2000 | IWDOSE CL | M80 | C | 20 | 1 | 300 | 1,11 | 22 |
General
technical characteristics

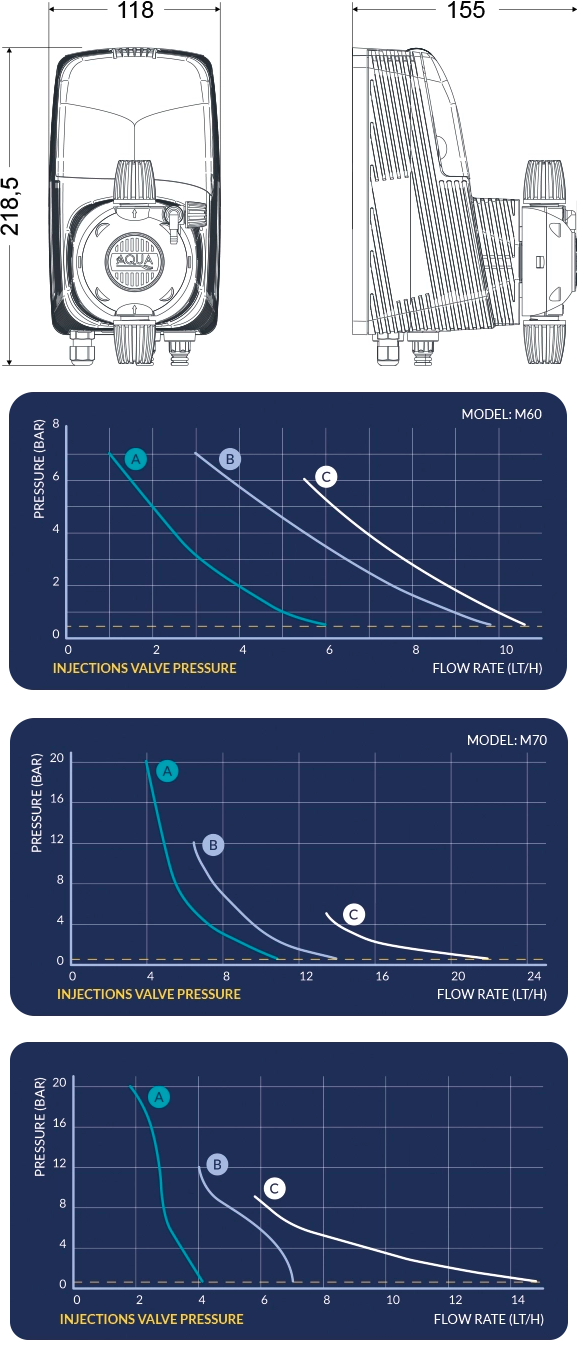

Dimensions
Pack
Height x Width x Depth: 179 x 189 x 250 mm
