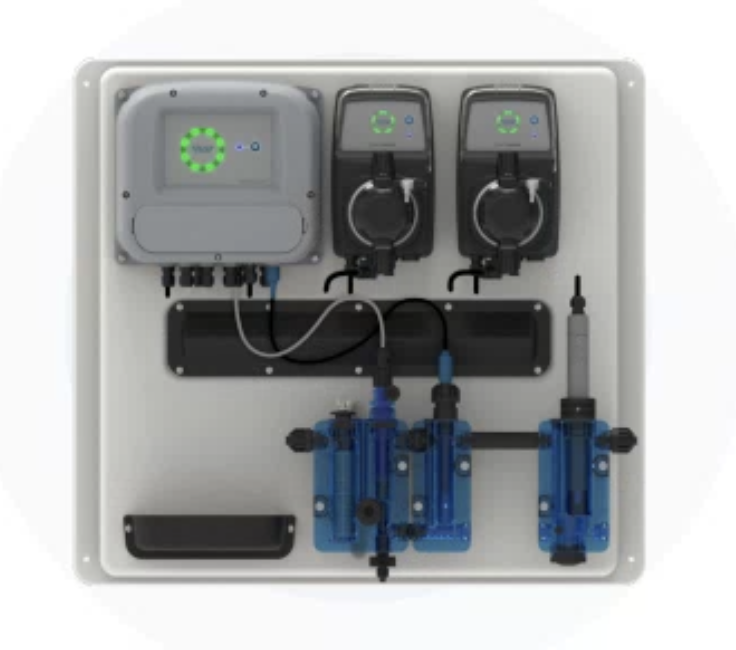

IW DOSING SYSTEM PRO
IW Dosing System Pro is a complete monitoring and dosing system, consisting of two electromagnetic pumps and a measurement
and control instrument, natively connected. Allows monitoring and
control of different aspects of the plant, taking advantage of measurement of pH, redox and chlorine parameters.
and control instrument, natively connected. Allows monitoring and
control of different aspects of the plant, taking advantage of measurement of pH, redox and chlorine parameters.
General Information
Fields of use
Public or private swimming pools
Water Treatment
Characteristics
Integrated Wi-Fi connection
Power supply 110-230VAC
Access Point/Standby button to allow connection to Wi-Fi
Bright LED rings that facilitates the reading of the parameters
Includes:
Power supply 110-230VAC
Access Point/Standby button to allow connection to Wi-Fi
Bright LED rings that facilitates the reading of the parameters
Includes:
- Two measurement models IW Sense instrument
- Two IW Dose proportional electromagnetic pumps
- Modular probe holder with pre-filter
- Check valve
- Flow sensor
- pH electrode + Rx electrode (vers. A)
- pH electrode + amperometric cell (Pt-Cu) for measurement chlorine 0-10ppm (vers. B)
- pH electrode + membrane amperometric probe forchlorine measurement 0-5ppm (vers. C)
- Buffer solutions
- Two flow sensor

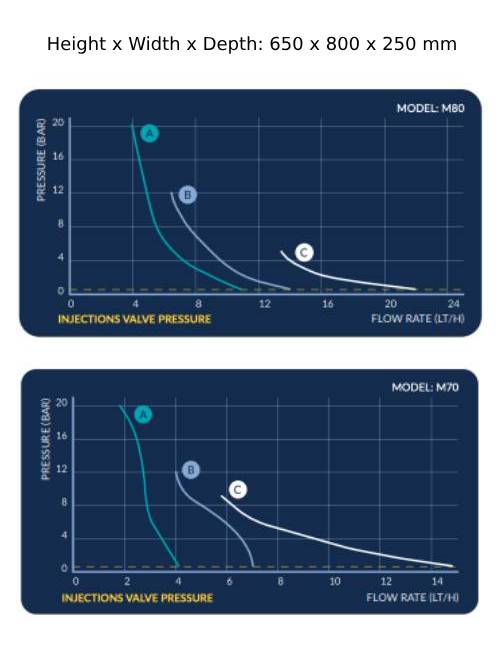

Technical data
| Code | Name | Pump type | Type | Probe | Signal | Injection pipe | Consumption (W) |
|---|---|---|---|---|---|---|---|
| IWPT+050 | IW Dosing System Pro pH-Rx | M70 | A | pH-Rx | - | 40W | |
| IWPT+060 | IW Dosing System Pro pH-Rx | M80 | A | pH-Rx | - | 50W | |
| IWPT+100 | IW Dosing System Pro pH-CL (Pt-Cu) | M70 | B | pH-CL | mV | 4x6 | 40W |
| IWPT+110 | IW Dosing System Pro pH-CL (Pt-Cu) | M80 | B | pH-CL | mV | 4x6 | 50W |
| IWPT+200 | IW Dosing System Pro pH-CL(J) | M70 | C | pH-CL(J) | mA | 40W | |
| IWPT+210 | IW Dosing System Pro pH-CL(J) | M80 | C | pH-CL(J) | mA | 50W |
General
technical characteristics
Dimensions
Pack
Height x Width x Depth: 650 x 800 x 250 mm
