Dosing System
ULTRA PUMP

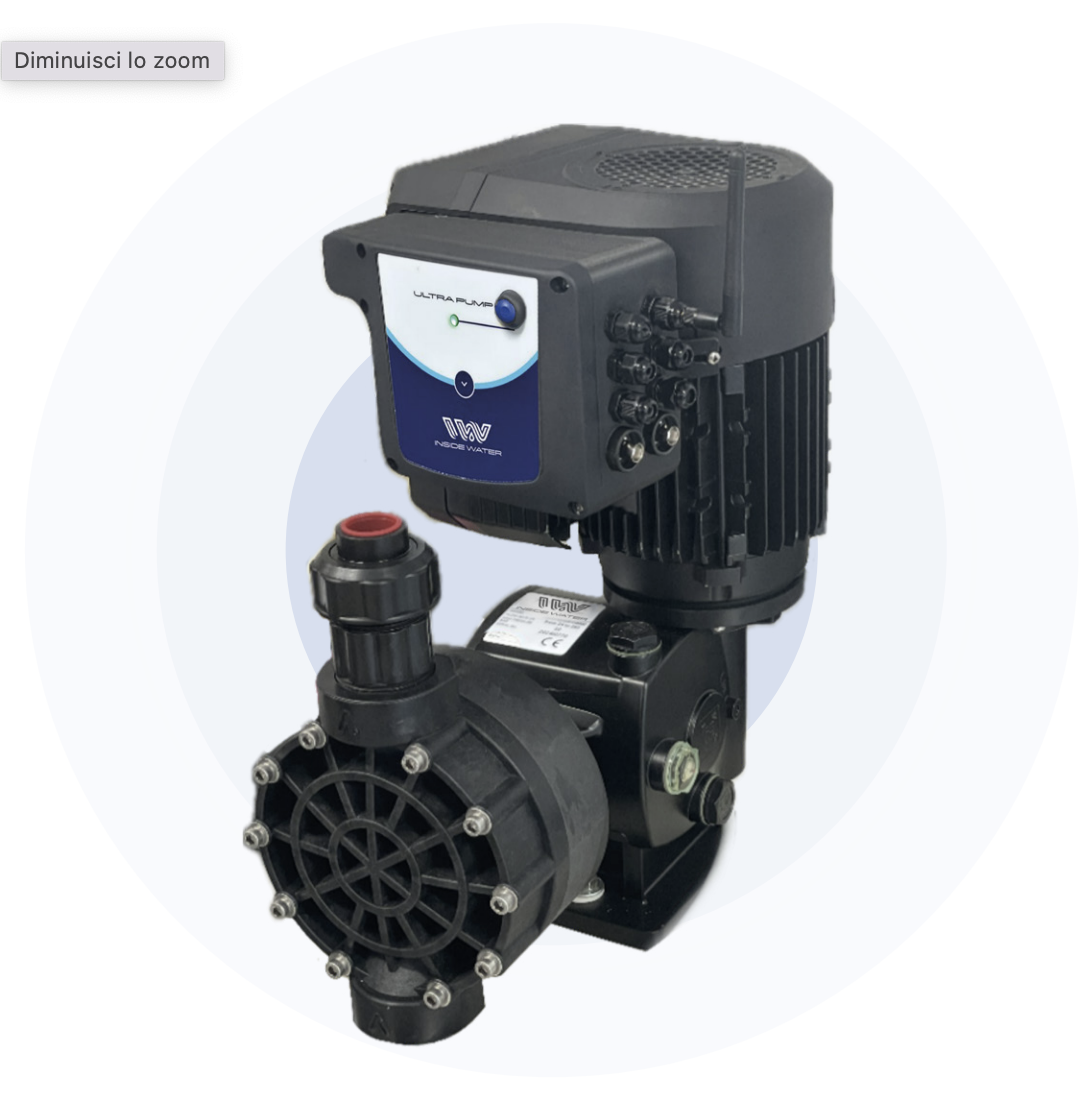

IW Ultra Pump is a natively connected motor-driven mechanical diaphragm dosing pump, which allows the automatic dosing of chemicals based on different parameters.
Available two versions, with different operating modes:
Available two versions, with different operating modes:
- UltraM: constant-cyclic-mA-Volt-pulses-ppm-%-ml/quintal;
- UltraP: constant-cyclic-pH/Rx mode.
General Information
Fields of use
Public or private swimming pools
Water Treatment
Characteristics
Integrated Wi-Fi connection
Power supply 200-480 VAC 3ph
3ph motor, 200/400V-48/62 Hz, 1,1 Kw, 1500 rpm
Continuous adjustment 10-100%
Various standard materials: reinforced PP, PVDF and S.S. 316L (extra configurations available)
4 sizes of diaphragm: 80, 110, 140 and 170mm
From 6 l/h at 16 bar, up to 1050 l/h at 2 bar
Power supply 200-480 VAC 3ph
3ph motor, 200/400V-48/62 Hz, 1,1 Kw, 1500 rpm
Continuous adjustment 10-100%
Various standard materials: reinforced PP, PVDF and S.S. 316L (extra configurations available)
4 sizes of diaphragm: 80, 110, 140 and 170mm
From 6 l/h at 16 bar, up to 1050 l/h at 2 bar
Technical data
| Diaphragm ∅ | Flow rate at 2 bar | Flow rate at max pressure | Fixed stroke length | Max pressure | Valve ∅ | Connections | Version | Reinforced PP head Pyrex valves* PTFE diaphragm | PVDF head PTFE valves PTFE diaphragm | S.S.316L head S.S.316L valves PTFE diaphragm |
|---|---|---|---|---|---|---|---|---|---|---|
| 80 mm | 7.8 - 78 l/h | 6 - 60 l/h | 4 mm | 16 bar | 5 | 1/4" BSP F | UltraM | IWUPM80B1 | IWUPM80FF | IWUPM80AA |
| 80 mm | 7.8 - 78 l/h | 6 - 60 l/h | 4 mm | 16 bar | 5 | 1/4" BSP F | UltraP | IWUPP80B1 | IWUPP80FF | IWUPP80AA |
| 110 mm | 28 - 290 l/h | 24 - 265 l/h | 6 mm | 10 bar | 8.5 | 3/8" BSP F | UltraM | IWUPM110BB | IWUPM110FF | IWUPM110AA |
| 110 mm | 28 - 290 l/h | 24 - 265 l/h | 6 mm | 10 bar | 8.5 | 3/8" BSP F | UltraP | IWUPP110BB | IWUPP110FF | IWUPP110AA |
| 140 mm | 42 - 425 l/h | 36 - 400 l/h | 6 mm | 8 bar | 17 | 3/4" BSP F | UltraM | IWUPM140BB | IWUPM140FF | IWUPM140AA |
| 140 mm | 42 - 425 l/h | 36 - 400 l/h | 6 mm | 8 bar | 17 | 3/4" BSP F | UltraP | IWUPP140BB | IWUPP140FF | IWUPP140AA |
| 170 mm | 106 - 1050 l/h | 90 - 970 l/h | 9 mm | 6 bar up to 799 l/h | 17 | 1" BSP F | UltraM | IWUPM170BB | IWUPM170FF | IWUPM170AA |
| 170 mm | 106 - 1050 l/h | 90 - 970 l/h | 9 mm | 6 bar up to 799 l/h | 17 | 1" BSP F | UltraP | IWUPP170BB | IWUPP170FF | IWUPP170AA |
*Ceramic valves on ∅80
General
technical characteristics
Pack
Height x Width x Depth: 420 x 320 x 480 mm
