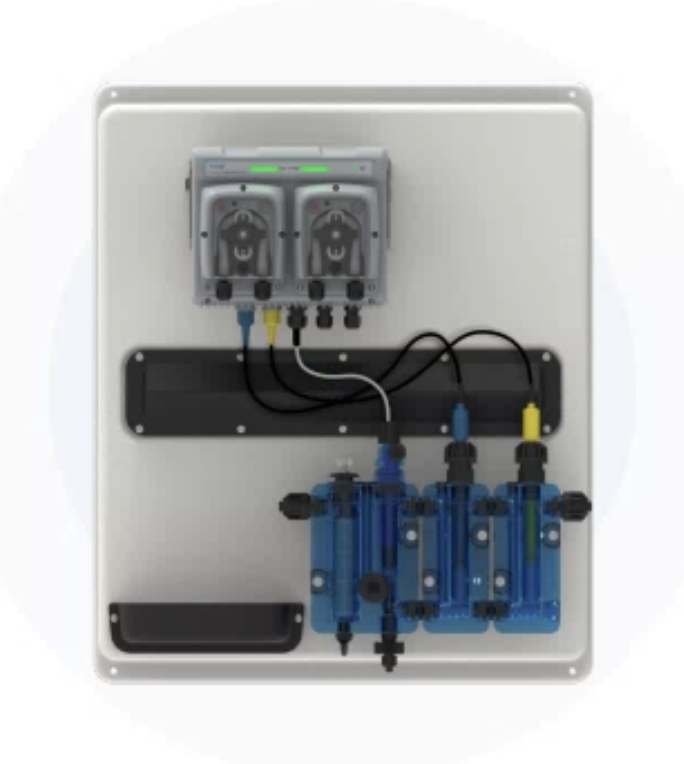

IW MULTIPOOL SYSTEM
The IW Multipool System is a dosing system with a digital and natively connected double peristaltic pump. Allows automatic dosing
of pool chemicals through measurement of pH and redox parameters.
of pool chemicals through measurement of pH and redox parameters.
General Information
Fields of use
Public or private swimming pools
Water treatment systems
Characteristics
Integrated Wi-Fi connection
Power supply 110-230VAC
Access Point/Standby button to allow connection to Wi-Fi
Bright LED bar that facilitates the reading of the parameters
Includes:
Power supply 110-230VAC
Access Point/Standby button to allow connection to Wi-Fi
Bright LED bar that facilitates the reading of the parameters
Includes:
- IW Multipool double peristaltic pump
- Modular probe holder with pre-filter
- Check valve
- Flow sensor
- pH electrode
- RX electrode
- Buffer solutions
- 2 sensori di livello
Technical data
| Code | Pump type | Type | Probe | Signal | Injection pipe | Consumption (W) | |
|---|---|---|---|---|---|---|---|
| IWPT+050 | IW Dosing System Pro pH-Rx | M70 | A | pH-Rx | - | 4x6 | 40W |
| IWPT+060 | IW Dosing System Pro pH-Rx | M80 | A | pH-Rx | - | 4x6 | 50W |
| IWPT+100 | IW Dosing System Pro pH-CL (Pt-Cu) | M70 | B | pH-CL | mV | 4x6 | 40W |
| IWPT+110 | IW Dosing System Pro pH-CL (Pt-Cu) | M80 | B | pH-CL | mV | 4x6 | 50W |
| IWPT+200 | IW Dosing System Pro pH-CL(J) | M70 | C | pH-CL(J) | mA | 4x6 | 40W |
| IWPT+210 | IW Dosing System Pro pH-CL(J) | M80 | C | pH-CL(J) | mA | 4x6 | 50W |
General
technical characteristics
Pack
Height x Width x Depth: 560 x 660 x 270 mm
