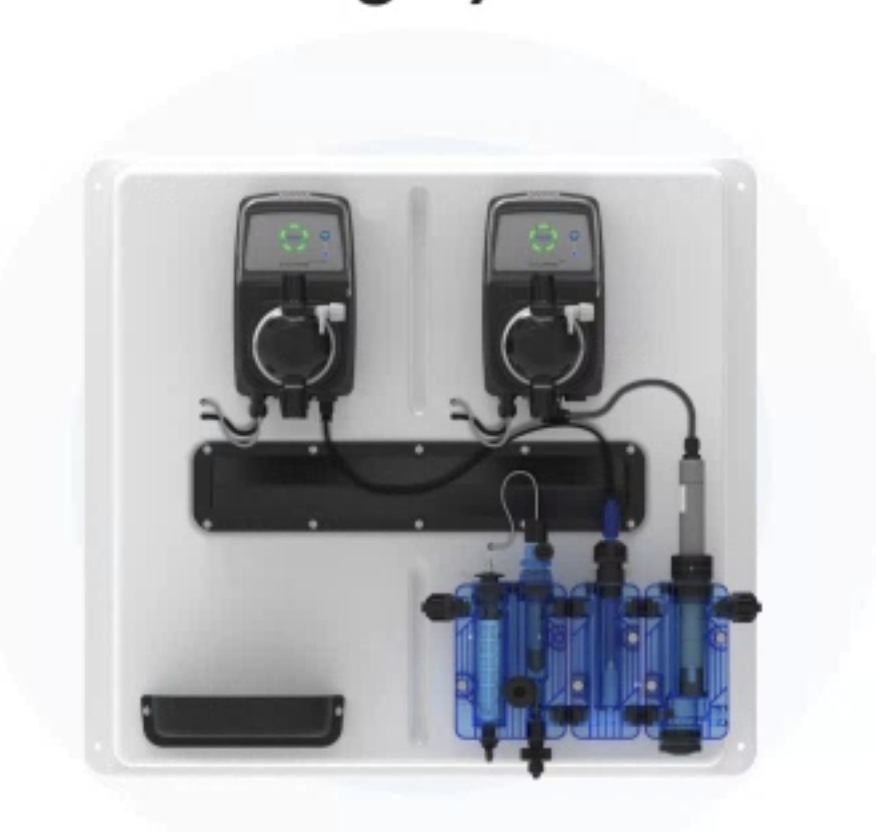

IW DOSING SYSTEM
IW Dosing System is a dosing system with two digital and natively
connected electromagnetic dosing pumps. It allows the automatic
dosing of chemicals for swimming pools by measuring the desired
parameters.
Available in the following versions:
connected electromagnetic dosing pumps. It allows the automatic
dosing of chemicals for swimming pools by measuring the desired
parameters.
Available in the following versions:
- With N. 2 IW Dose pH-Rx pumps, modular probe holder and pH-Rx probes
- With N. 1 IW Dose pH-Rx pump and N. 1 IW Dose CL(J) pump, modular probe holder and pH-CL(J) probes
- With N. 1 IW Dose pH-Rx pump and N. 1 IW Dose CL pump, modular probe holder and pH-CL (Pt-Cu) probes
General Information
Fields of use
Public or private swimming pools
Water treatment systems
Characteristics
Integrated Wi-Fi connection
Power supply 110-230 VAC, 50-60 HZ
Access Point/Standby button to allow connection to Wi-Fi
Bright LED ring that facilitates the reading of the parameter
and signal any errors.
Degree of protection IP65
Possibility to select the desired performance, choosing the flow
rate (between 1 and 20 l/h), and the pressure (between 1 and 20
bar)
Different versions available: pH-Rx, pH-CL(J) and pH-CL (Pt-Cu)
Power supply 110-230 VAC, 50-60 HZ
Access Point/Standby button to allow connection to Wi-Fi
Bright LED ring that facilitates the reading of the parameter
and signal any errors.
Degree of protection IP65
Possibility to select the desired performance, choosing the flow
rate (between 1 and 20 l/h), and the pressure (between 1 and 20
bar)
Different versions available: pH-Rx, pH-CL(J) and pH-CL (Pt-Cu)

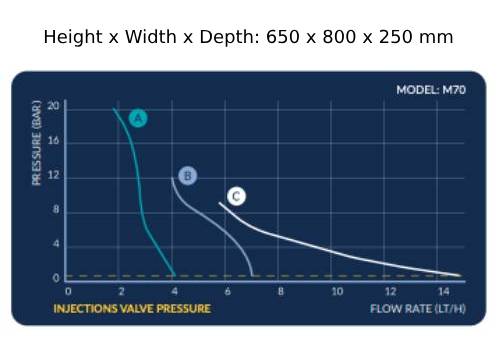

Technical data
| Code | Name | Magnet | Type | Range flow rate (l/h) | Range pressure (bar) | Strokes (n/min) | Stroke volume (ml/stroke) | Consumption (W) |
|---|---|---|---|---|---|---|---|---|
| IWDS050 | IW Dosing System pH-Rx | - | A | 1.8 | 20 | 75 | 0.4 | 16 |
| IWDS100 | IW Dosing System pH-CL (Pt-Cu) | M70 | B | 4 | 12 | 120 | 0.56 | 16 |
| IWDS200 | IW Dosing System pH-CL(J) | M70 | C | 5.8 | 9 | 180 | 0.97 | 16 |
| IWDS200 | IW Dosing System pH-CL(J) | M70 | C | 14 | 1 | 180 | 1.3 | 16 |
General
technical characteristics
Dimensions
Pack
Height x Width x Depth: 650 x 800 x 250 mm
